KDS Allegro PERISTALTIC PUMP SYSTEM

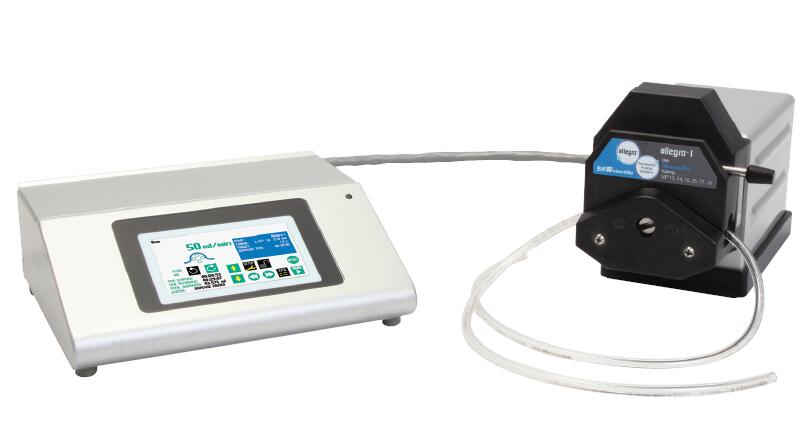

Allegro™ I Peristaltic Pump System
• One channel pump head
• Flow rates up to 1500 ml/min
• Accepts tubing ID sizes 0.8 mm (0.03 in) –
8.0 mm (0.32 in)
• Compatible with Masterflex® L/S® 13, L/S® 14, L/S®
16, L/S® 25, L/S® 17 and L/S® 18 tubing

Allegro™ II Peristaltic Pump System
• Two channel pump head
• Two simultaneous individual flows or one
combined flow
• Flow rates up to 720 ml/min with
combined channels
• Accepts tubing ID sizes 0.8 mm (0.03 in) –
4.8 mm (0.19 in)
• Compatible with Masterflex® L/S® 13, L/S® 14, L/S®
16 and L/S® 25 tubing

Allegro™ III Peristaltic Pump System
• Two single channel pump heads
• Two simultaneous individual flows or one
combined flow
• Flow rates up to 2000 ml/min with
combined channels
• Accepts tubing ID sizes 0.8 mm (0.03 in) –
8.0 mm (0.32 in)
• Compatible with Masterflex® L/S® 13, L/S® 14, L/S®
16, L/S® 25, L/S® 17 and L/S® 18 tubing

Allegro™ System Ordering Information
Order #          Product Name Description
System
78-5501 Allegro™ I Peristaltic Pump  System     Single channel, Masterflex® Pump Head, drive and controller
78-5502 Allegro™ II Peristaltic Pump System      Dual channel, Masterflex® Pump Head, drive and controller
78-5503 Allegro™ III Peristaltic Pump System     Two, single channel, Masterflex® Pump Head,drive and controller
Accessories
78-0225 Allegro™ Footswitch Footswitch with phono jack plug for Allegro™I, II, & III
78-5531 Allegro™ I to III Conversion Kit   Single channel, thin wall tubing head and hardware
78-5542 Allegro™ Stacking Base Allows two Allegro™ head/drive units to be vertically stacked
78-8355 TTL Communication Cable Connects two Allegro™ controllers for programmable control
